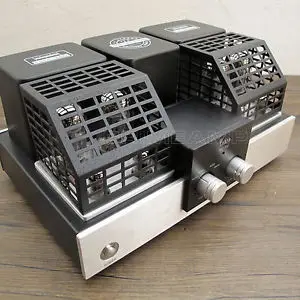

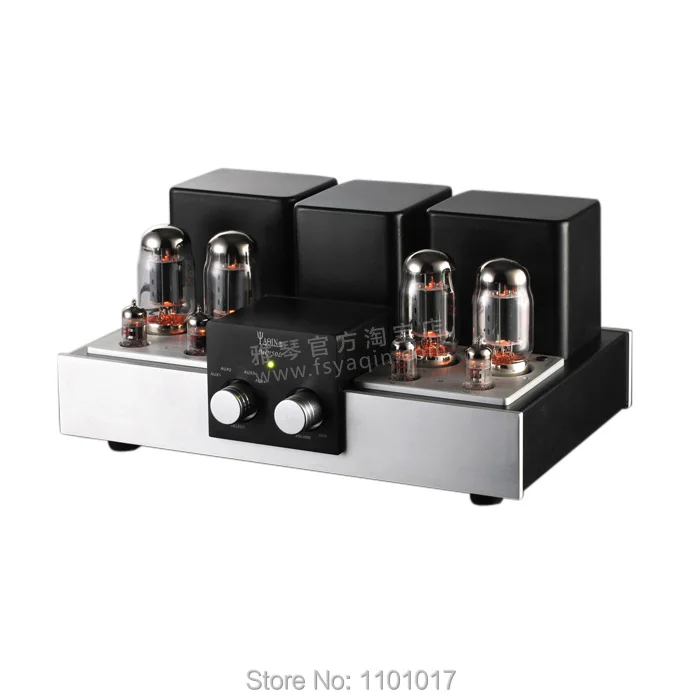

YAQIN MC-50L KT88 push-pull tube amplifier Class A

19.034.441

Hỗ Trợ Nâng Cấp Miễn Phí

Hỗ trợ đổi sang mã khác trong 15 ngày đầu mà không mất bất cứ chi phí nào.

Thanh Toán Khi Nhận Hàng

Tất cả các đơn đặt hàng đều thanh toán trực tiếp tại địa nhận hàng.

Liên Hệ Tư Vấn

Tư vấn 1: 0986 673 473
Tư vấn 2: 0975 879 985 [Zalo]
Add: P2101, Tòa A, Star Tower 283 Khương Trung, Hà Nội

còn 18 hàng

Mã: 32647294875 Danh mục:

Mô tả

YAQIN MC-50L:
Technical Parameters:
  • Output Power: 50W + 50W (6Ω)
  • Distortion: ≤1.0% (30W when)
  • Frequency Response: 6Hz – 50kHz (-2dB)
  • SNR: ≥85dB (A)
  • Input Sensitivity: ≤0.25V
  • Tube: KT88 (6550) × 4 12AT7 x 2 12AU7 x 2
  • Load Impedance: 4Ω – 8Ω
  • Power Consumption: ≤370W
  • Dimension: length 425mm x width 325mm x height 210mm
  • Package Weight: 21kg
Features:
  • Using the latest improved exported tube of KT88 as amplification.
  • Choosing the best ultra-liner push pull amplifier circuit to make Low-frequency strong and the sound more rich.
  • Using the SRPP pre-amplifier circuit and Elliot inverter circuit to have a widefrequency response and distortion.
  • Output transformers manufactured with Japanese silicon steel sheet and oxygen-free enameled copper and high quality lacquer, which offer a wide dynamic range at full rated output.
  • High voltage delay start function can effectively extend the service life of tubes.
  • The item uses the foreign famous audio special fever-point solution and Philip-s (MKP) nonpolar capacitors and high-progress gold hindered from making, using imported special large volume potentiometer, having a musical background quiet, low noise, no coloration.

Thông tin bổ sung

Brand Name

NoEnName_Null

Maximum Power Per Channel

40W

Model Number

MC-500L

Package

Yes

Channels

2 (2.0)
